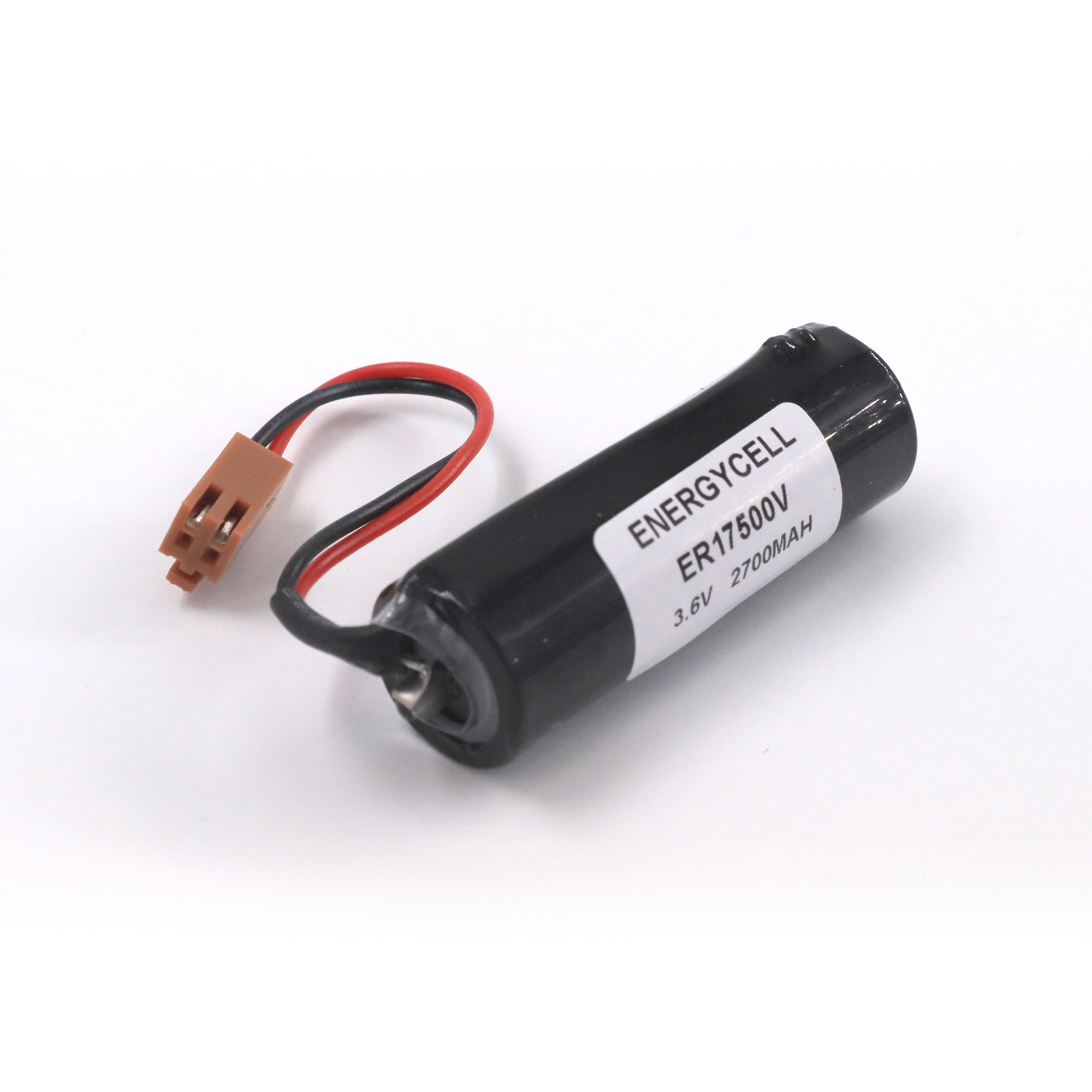

ENERGYCELL ER17500V TOSH PLC LITHIUM 3.6V 2700 MAH BATTERY with wire

About this item

ENERGYCELL ER17500V 3.6V lithium-thionyl chloride (Li-SOL2) cylindrical battery lithium battery PLC battery CNC lithium battery
Model: ER17500V
Voltage: 3.6V non-rechargeable lithium battery
Size: 17*53mm
Capacity: 2700mah
Maximum discharge: 3.5ma
Battery weight: 20g
Rated voltage: 3.67V
Cut-off voltage: 2.0V.

product advantages:
Lithium-thionyl chloride battery is the highest energy battery in actual use (500 wh/kg, 1000wh/dm3)
1. When discharging at room temperature and medium current density, the discharge curve is extremely flat. The working platform remains unchanged within 90% of the capacity;
2. The battery can work normally within the range of -40°C~+85°C. The capacity at -40°C is about 50% of the normal temperature capacity, showing excellent high and low temperature performance;
3. Annual self-discharge rate <=1%; storage life is more than 10 years.

Application scope: real-time clock, alarm system, PLC backup memory power supply, FANUC CNC system, servo motor, machine tool equipment, various measuring instruments, special electronic equipment, etc.

Precautions:
1. This battery is a non-rechargeable battery. If you want to detect the quality of the battery, you can only measure the voltage, not the short-circuit current.
2. Before installation, be sure to compare the positive and negative poles of the original battery before installing.
