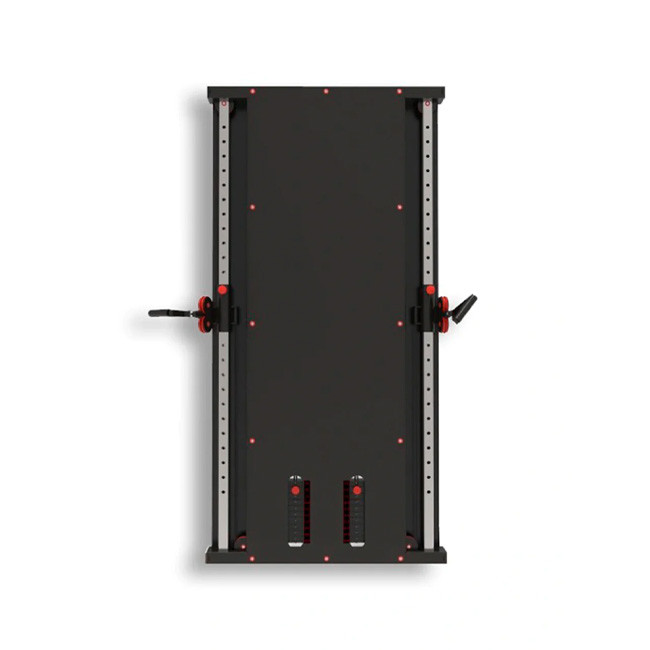

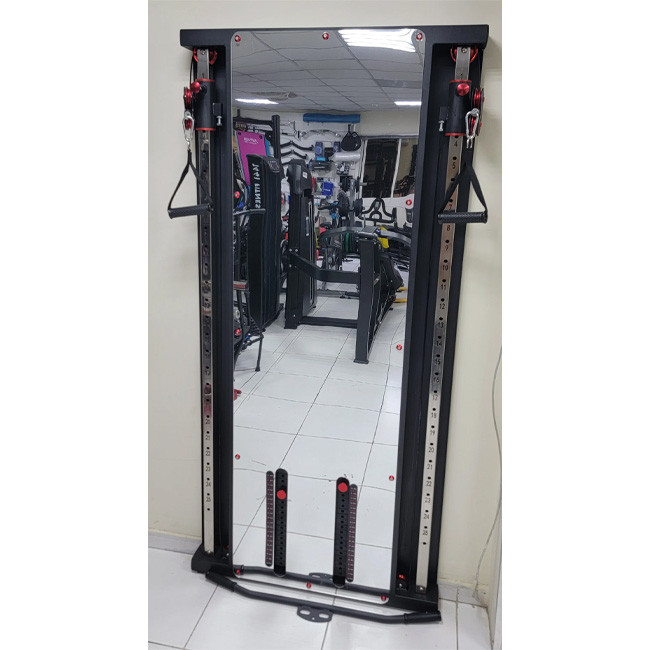

1441 Fitness Wall Mounted Mirror Functional Trainer - 41FGT980

How to install the 1441 Fitness Wall Mounted Mirror Functional Trainer (41FGT980)

Step 1 — Site prep & clearances
Identify a load-bearing wall with minimum height clearance of ~2.2 m and sufficient front clearance for cable travel (allow ≥ 2.5 m). Remove obstacles and measure the final footprint.

Step 2 — Unpack & inventory parts
Unpack the unit carefully. Verify frame, dual weight stacks (plates), pulleys, cables, mounting plates, fasteners, mirror face, and the hardware kit against the parts list.

Step 3 — Wall reinforcement
If the wall is drywall over studs, fit a reinforced backer plate or mount to masonry/concrete using recommended anchors. Follow manufacturer torque specs for wall anchors — do not rely on drywall alone.

Step 4 — Position & mount frame
Lift the main frame into position (use 2–3 persons). Temporarily fasten top anchors, level the unit, then secure remaining mounting points. Confirm frame is plumb and all fasteners are tensioned per spec.

Step 5 — Install pulleys, guide rods & route cables
Attach self-aligning aluminum pulleys and bearings. Route cables exactly per the wiring diagram (101" reach), ensuring smooth transitions across pulleys and correct end fittings to stacks and handle points.

Step 6 — Add weight plates & test
Mount weight plates, check selector function, and test pulley action with light loads. Inspect for binding, unusual noise, or misrouted cables. Tighten all fasteners after initial test and recheck after first week of use.

Troubleshooting

• Cable binding: Reinspect routing path and pulley seating; adjust pulley alignment.

• Wall movement: Verify anchor type and torque; add reinforcement if necessary.

• Uneven stack travel: Check guide alignment and plate seating; adjust shims on guide rods if provided.

Safety note: Professional installation is strongly recommended for warranty and safety compliance.

The 1441 Fitness 41FGT980 suits users and operators in the UAE who need commercial functionality in a compact package. It’s ideal for:

• Home gym owners in apartments or villas who want pro-grade cable versatility without occupying large floor areas.

• Boutique studios & hotels that require a compact solution offering wide programming for guests and members.

• Physiotherapy & rehab clinics needing precise, adjustable resistance and multi-angle cable vectors for progressive recovery protocols.

• Personal trainers who run space-efficient training zones or in-home sessions and need quick exercise transitions.

• Commercial gyms with limited space looking to add a high-value, low-footprint functional trainer for technique work, warmups, and accessory training.

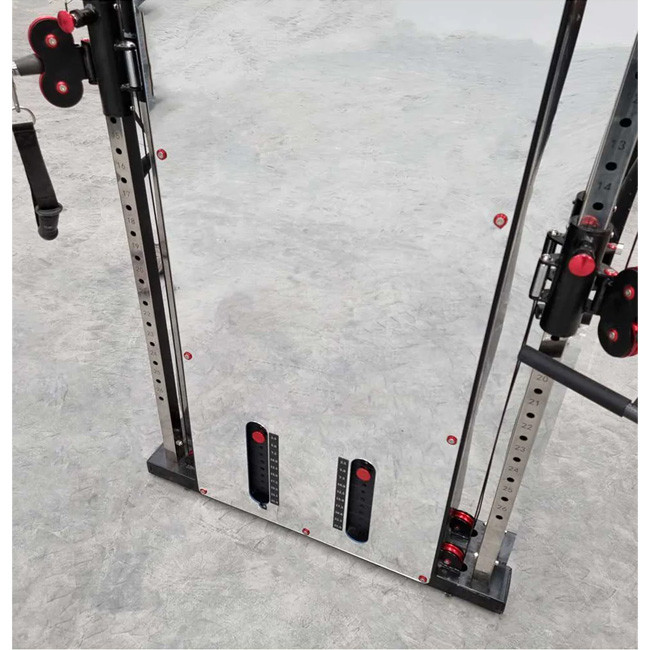

Its mirror-front gives immediate form feedback advantageous for technique coaching, while dual stacks and 26 pulley heights support users from rehab level loads through functional strength work.

Q1: What are the weight stacks and how do they feel at the handle?
The trainer uses dual 110 lb stacks (10 × 11 lb plates per side). Because the system uses a 2:1 pulley ratio, 110 lb loaded on the stack will feel like 55 lb at the handle — giving finer resistance increments and safer loading for rehab or technique work.

Q2: How much space does the 41FGT980 need?
The unit is wall-mounted and compact: the frame measures about 38" W × 5" D (9" deep when accounting for cables) and 84" H. Allow additional clearance in front for full cable travel (the unit’s 101" cable reach) and at least 60–90 cm of operational space for safe movement.

Q3: Is the trainer suitable for rehabilitation and physiotherapy clinics?
Yes. The wide pulley height range (26 positions), smooth self-aligning pulleys, and 2:1 ratio make the 41FGT980 ideal for controlled, progressive rehab protocols and assisted movement patterns used in physiotherapy settings.

Q4: Does installation require a structural wall?
Yes — professional installation onto a load-bearing or suitably reinforced wall is recommended to ensure safety and long-term stability. Have a qualified installer verify wall strength and use appropriate anchors as per the manufacturer’s guide.

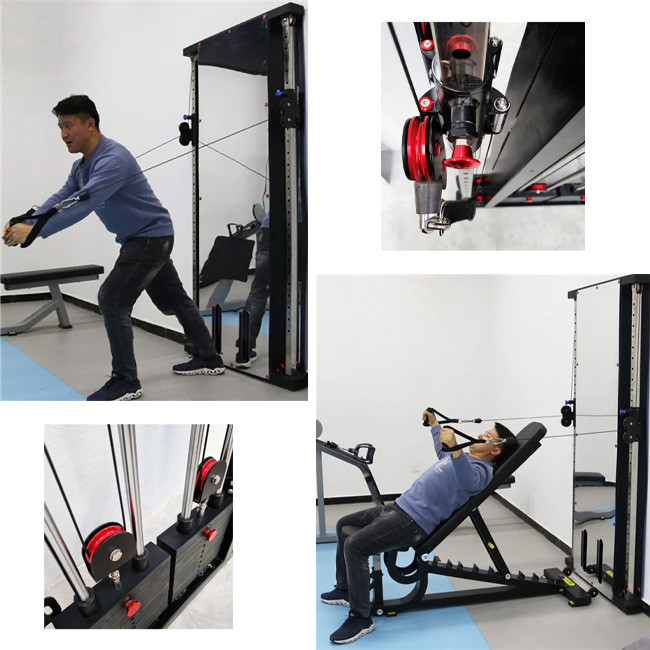

Q5: What exercises can be performed on this functional trainer?
The trainer supports hundreds of exercises: cable presses, rows, single-arm chops, woodchoppers, cable squats, lunges, standing flyes, face pulls, rotational core work, triceps pushdowns, biceps curls, and more — all with adjustable height and pulley angle.
